SIMCom A7680C LANS connection error

HiveMQ Cloud
1

Dear Support Team,

I am experiencing difficulties connecting my SIMCom A7680C LANS module to HiveMQ Cloud over TLS. I have reviewed the relevant documentation, uploaded the recommended CA certificate to the module, and enabled the required settings. The module appears to operate normally; however, every connection attempt results in an error.

Could you please advise on possible causes and recommended troubleshooting steps?

Environment & steps taken

  • Device: SIMCom A7680C LANS

  • Target: HiveMQ Cloud (TLS)

  • Actions performed: loaded CA certificate, configured SSL/TLS (SNI and time checks as applicable), verified network registration and IP, started MQTT client, then attempted ssl:// connect

  • Current result: connection fails with an error message

I would appreciate your guidance. I can provide detailed logs (ATI/AT+GMR, AT+CMEE=2 output, AT+CSSLCFG?, AT+CMQTTSTART/CONNECT traces) if helpful.

Thank you for your support.

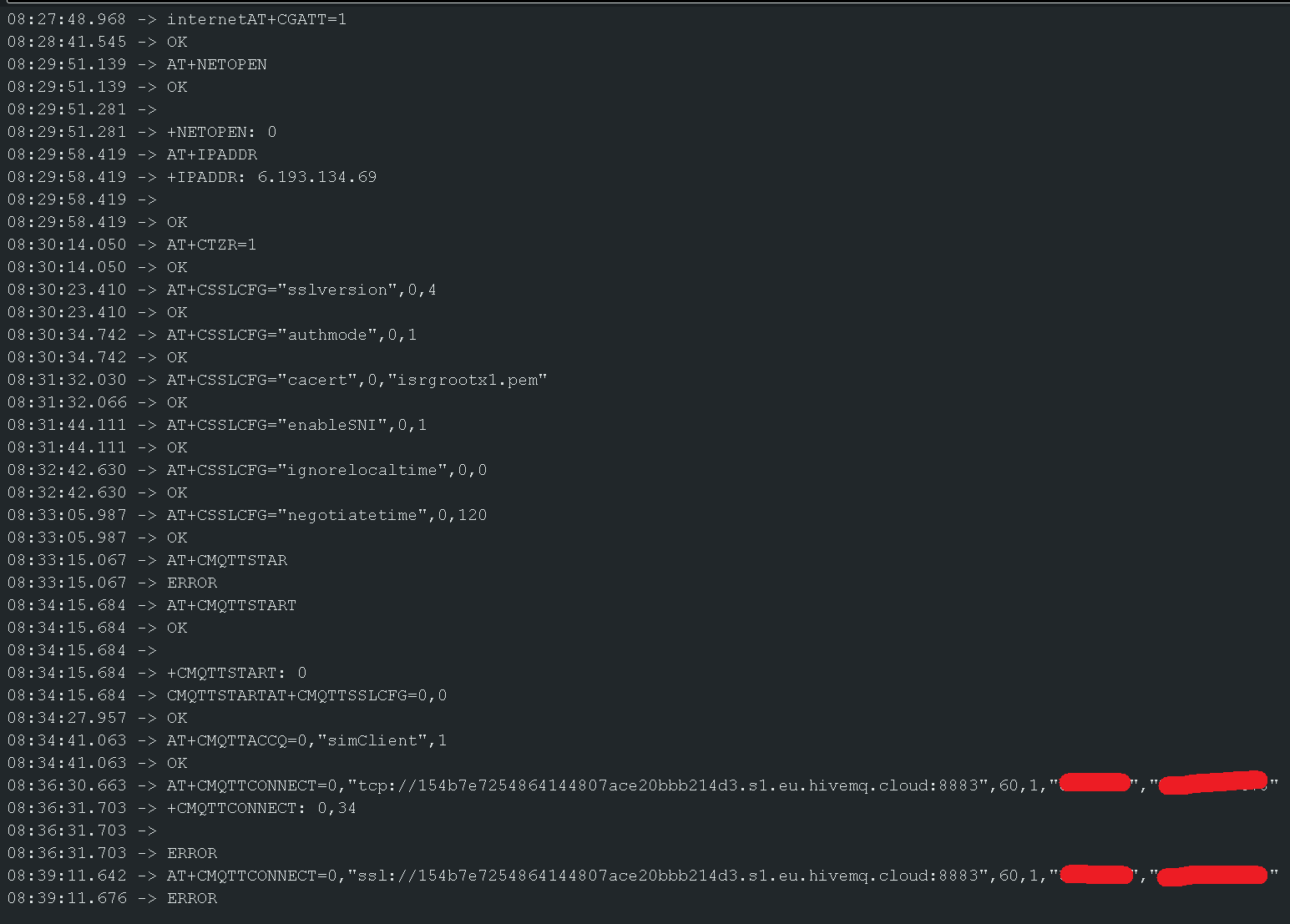

CONNECT
CONNECT1545×1107 21.4 KB

2

Hello​,

Could you try installing the attached CA certificate to the module and see if it helps?

Regards,
Gil

(Attachment isrgrootx1.pem is missing)

3

Hello,

To assist further, could you please let us know your feedback on the issue? We look forward to hearing from you.
​
Regards,
Gil
